Description and Application

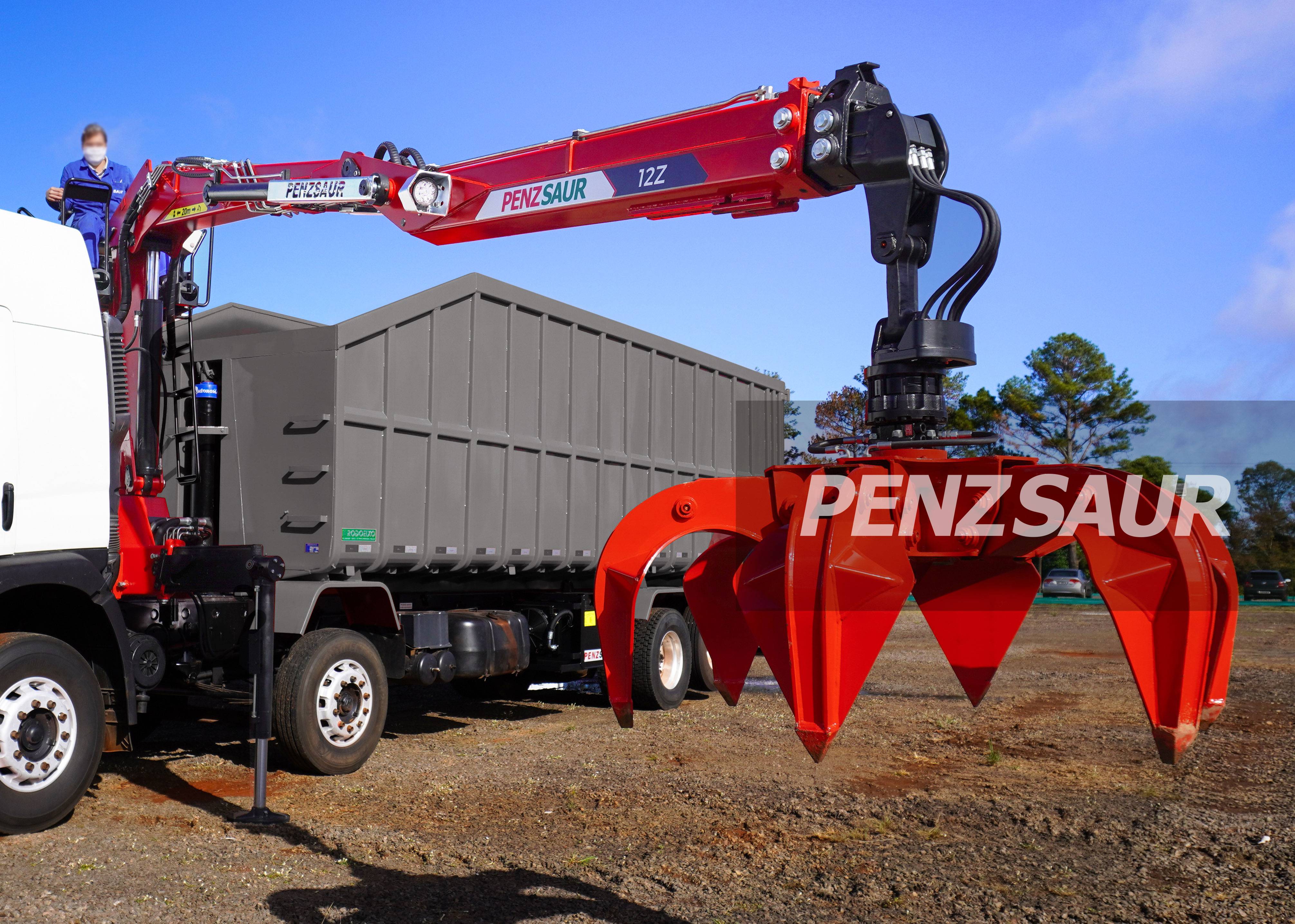

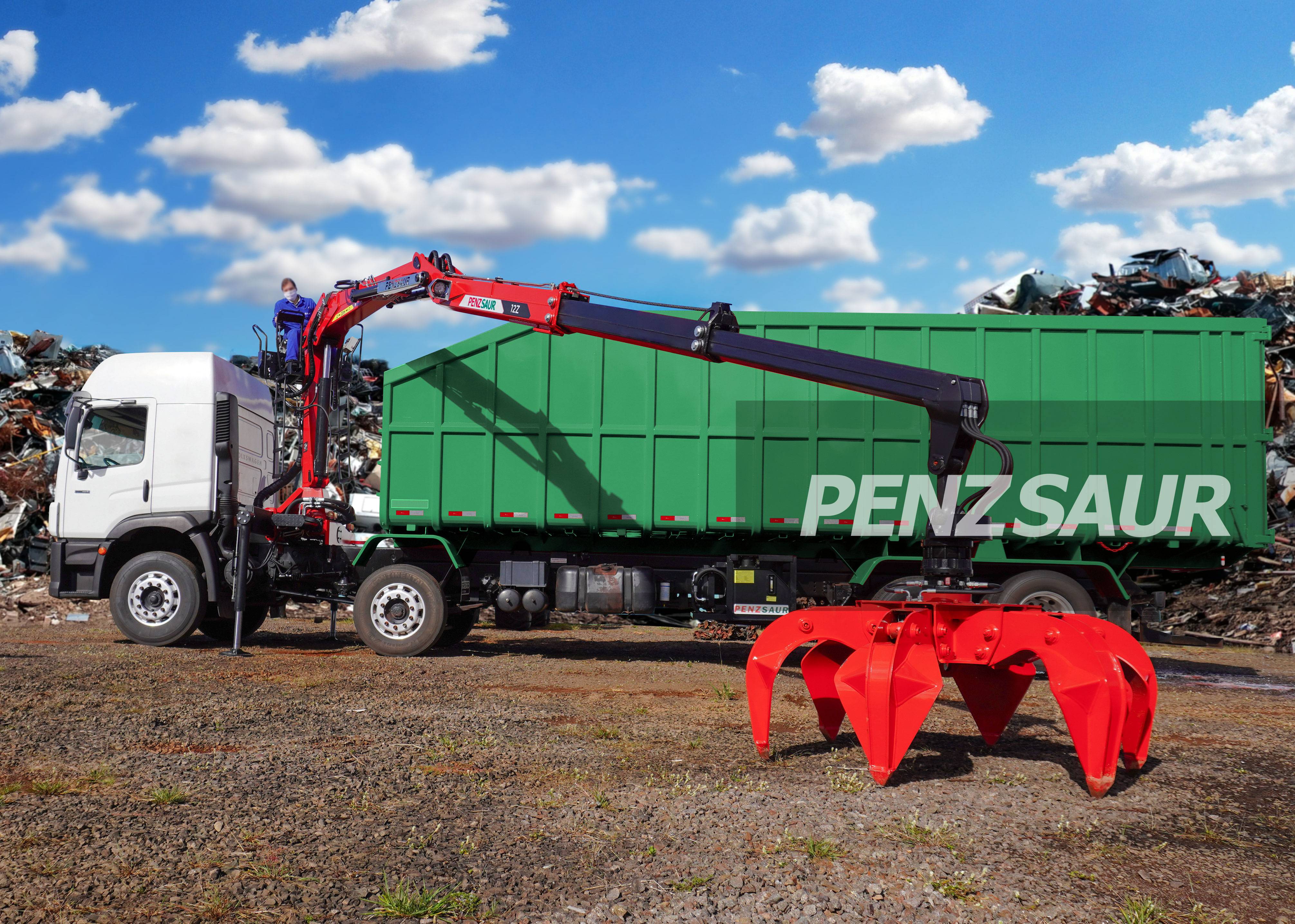

The Scrap Claw is designed to handle different types of scrap, such as rubber, tire shred, iron, cans, wire, paper, among others. It can be attached to Overhead Cranes, Gantry Cranes, Cranes, Forklifts and Loaders. It features different types of teeth (grippers) for an efficient and safe handling of the loads, ensuring better grip and service life. Its capacity ranges from 120 to 2000 liters.

Specifications

  • Models available: RR 560;
  • Capacity: 560 dm³;
  • Nº of teeth: 05; Work pressure: 300 bar;
  • Force of the teeth: 1.270 Kg;
  • Approximate weight of assembly: 1.500 kg
  • Dimensions of claw:
  • Teeth opening = 2.000 mm;
  • Claw height = 1.460 mm;
  • Drive through the crane control (open/close claw);
  • Hydraulic unit with 15 hp included, with auxiliary drive board attached to it;
  • No rotator.

Want more information or want a customized product?
