Description and Application

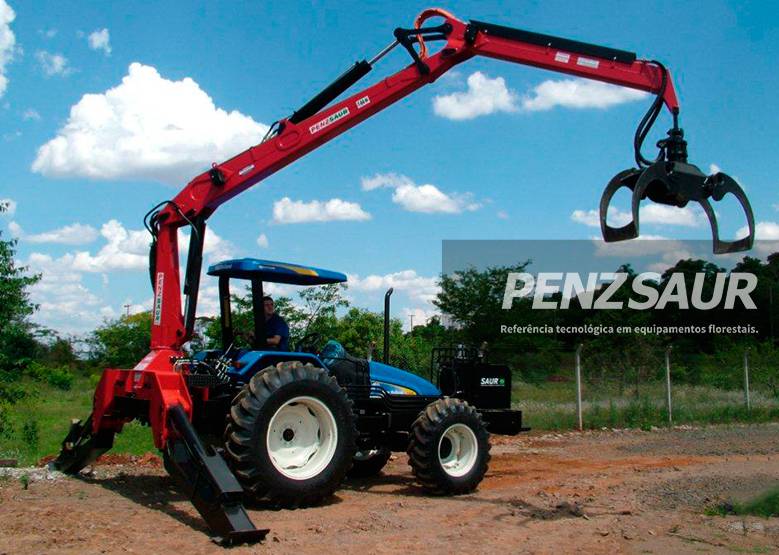

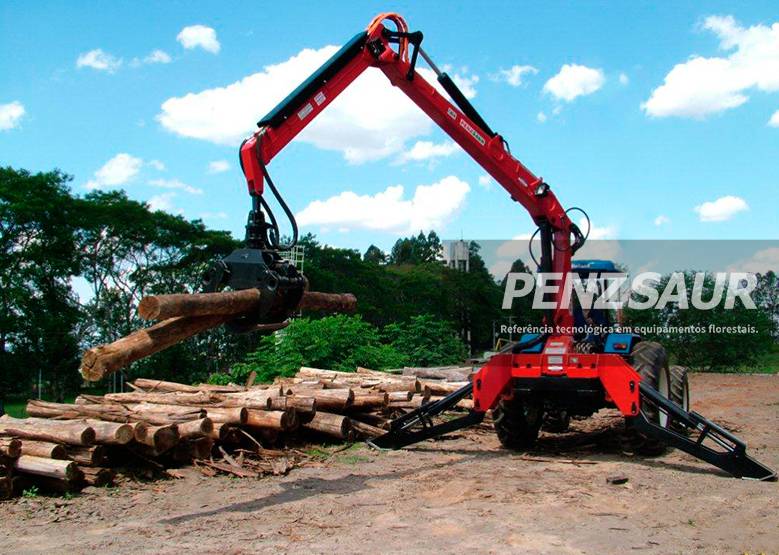

These cranes with a capacity of up to 8 tonnes can be installed on tractors, trucks and self loaders. They are the perfect tools for logging. Their excellent performance results in high productivity, loading trucks and trailers in a practical, fast and safe manner.







Specifications

  • Usage: tractor
  • Loading Moment: 70 kNm
  • Arm length: 6m
  • Angular Moment - Torque: 20,7 kNm
  • Rotation Angle: 380°
  • Nett Weight: 1450 kgf
  • Operational Pressure: 215 bar
  • Hydraulic Flow: 2x70 l/min
  • Independant stabilizer for up to 7 tonnes weighing 800 kgf
