Description and Application

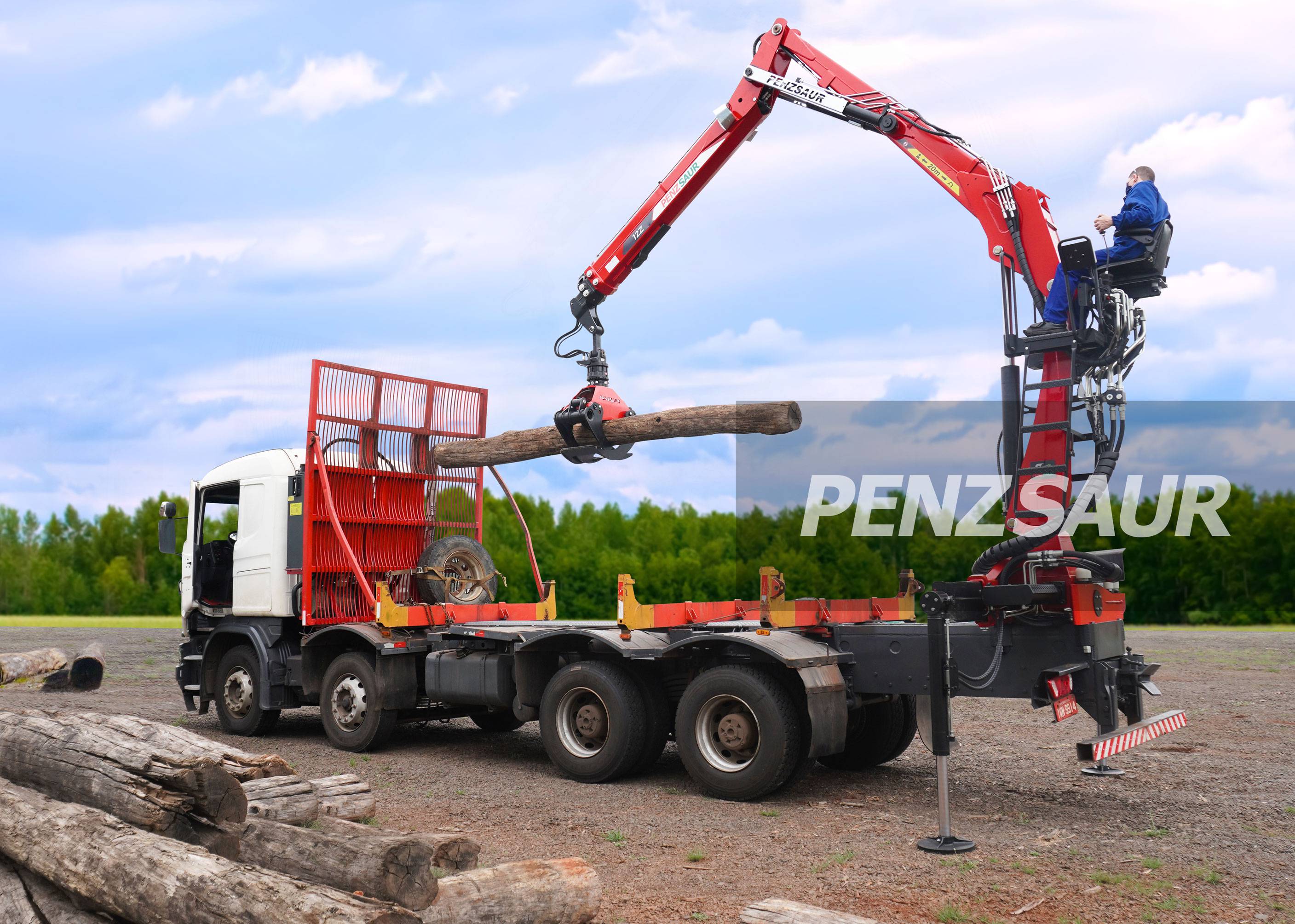

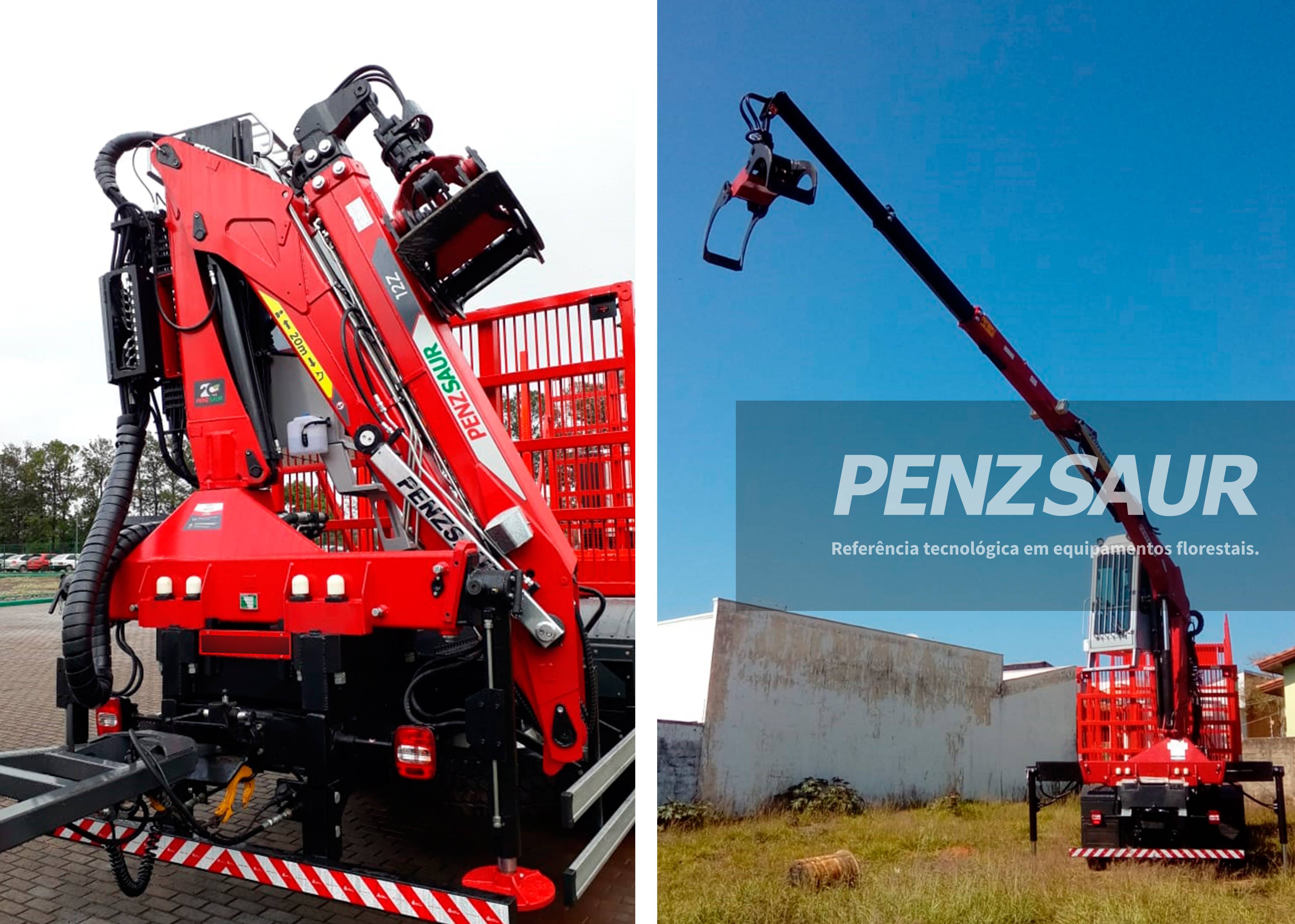

These PENZSAUR cranes with a capacity of up to 9 tonnes can be installed on tractors or trucks or be stationary. They make the vehicle highly versatile and self sufficient. With the model with the double telescopic arm the crane arm has a greater reach.





Specifications

  • Usage: Truck
  • Loading Moment: 111 kNm
  • Arm length:7,6m
  • Angular Moment - Torque: 23,6 kNm
  • Rotation Angle: 380°
  • Nett Weight: 1770 kgf
  • Operational Pressure: 255 bar
  • Hydraulic Flow: 90 a 100 l/min
  • Integrated stabilizer
