Description and Application

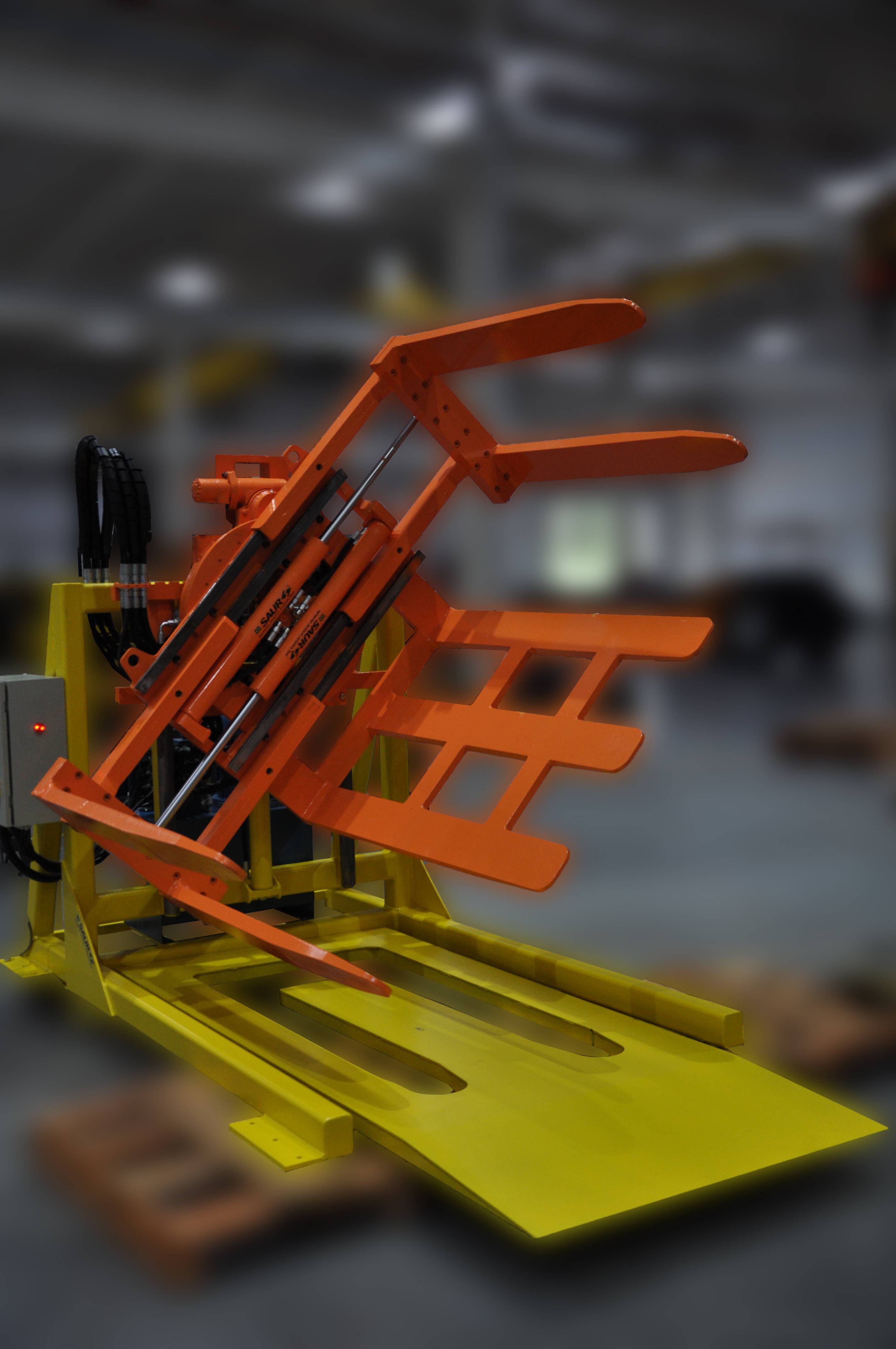

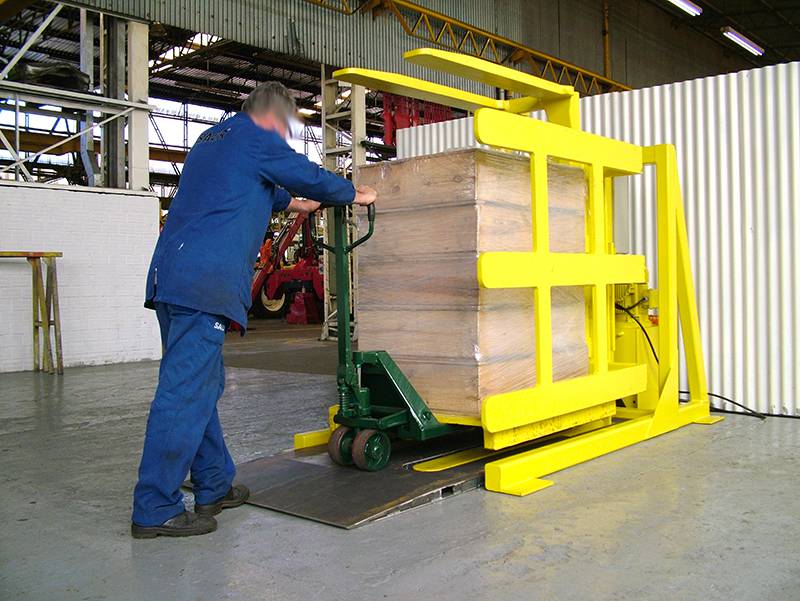

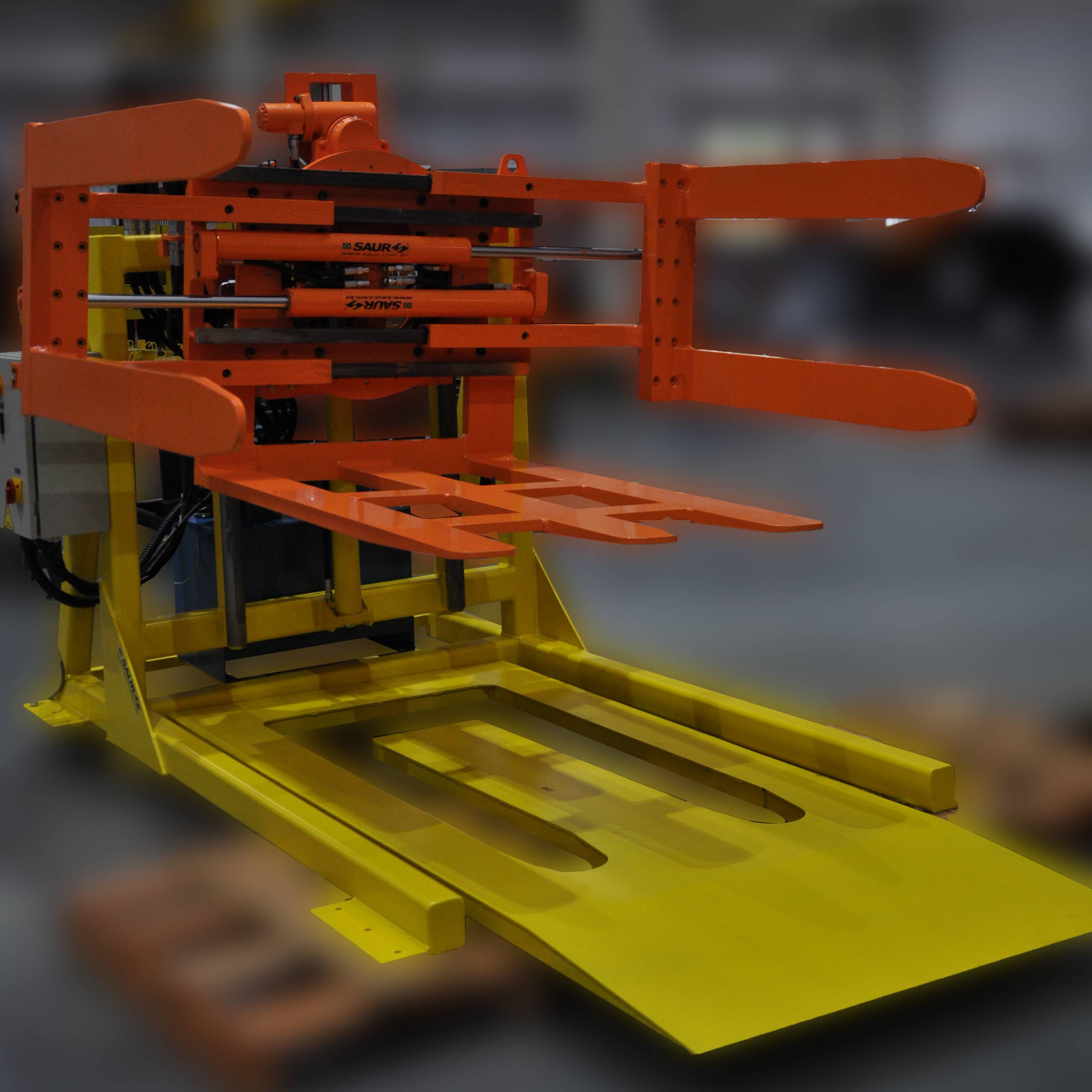

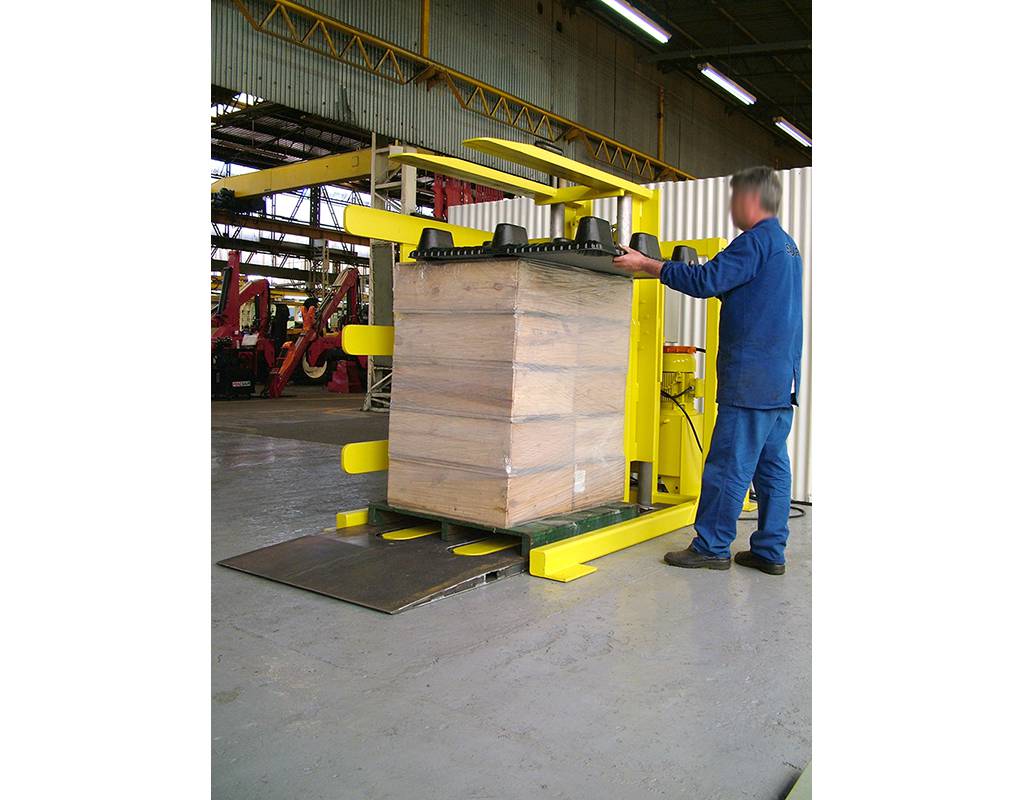

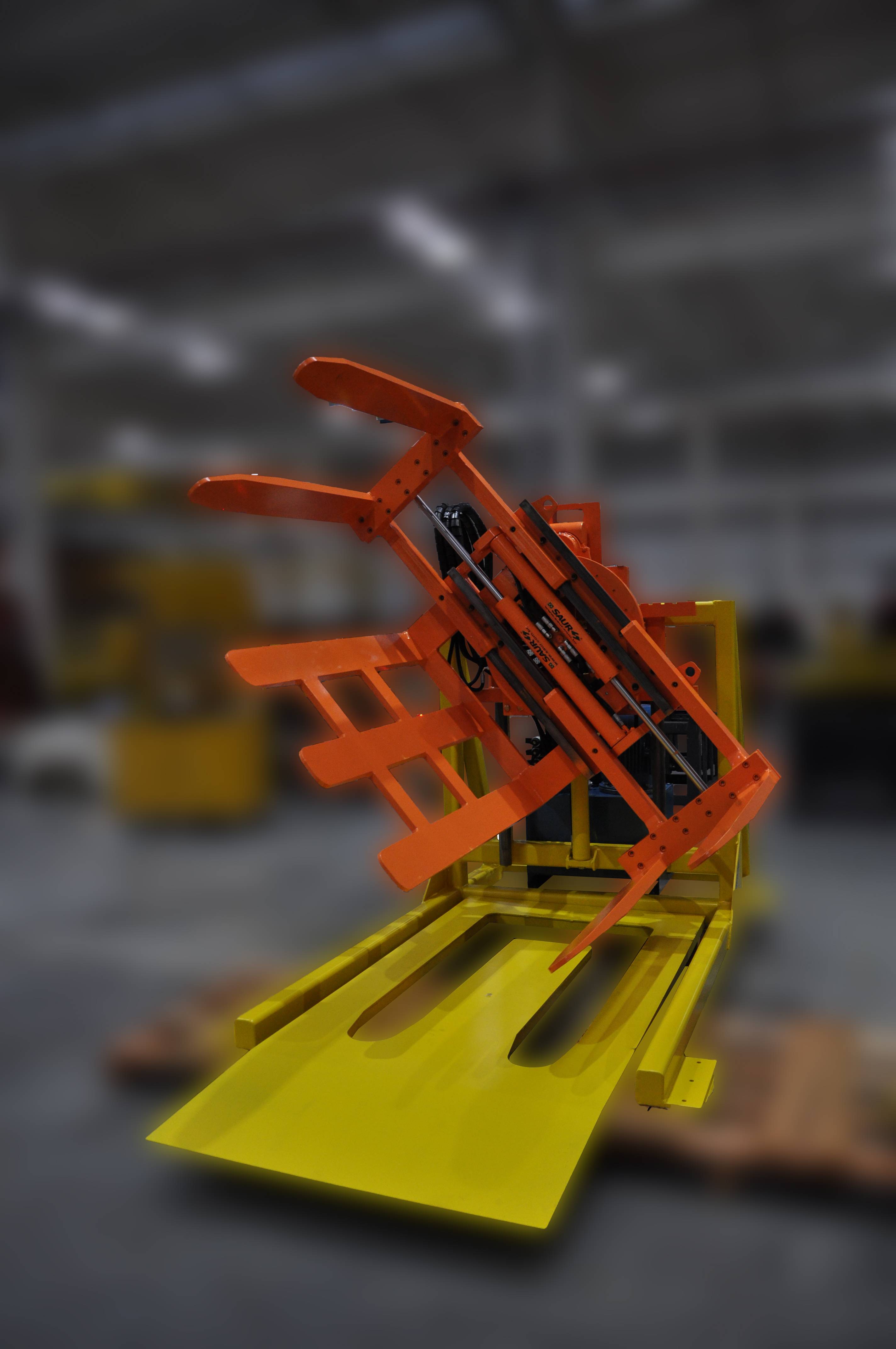

The SAUR Stationary Inverter with Forks is a piece of equipment that transfers a load from one pallet to another. At shipping the load can be turned over a simpler construction one way pallet. During the manufacturing process the load can be transferred to a metal or plastic pallet, preventing contamination with wood. It can also be used in drums with paints, varnishes and chemical products, to rotate them to prevent the formation of surface crusts. This equipment is attached through anchor bolts and the load is raised to the Stationary Inverter by a Pallet Truck or forklift.

Specifications

  • Capacity: 2,000 Kg
  • Opening between Forks: 1,100 to 1,800 mm
  • Fork Length: 1,200 mm
  • Fork Separation: 650 mm
  • Elevation: 500 mm
  • Controlled via electric button
  • Installed Capacity: 10 hp 360º continuous rotation
